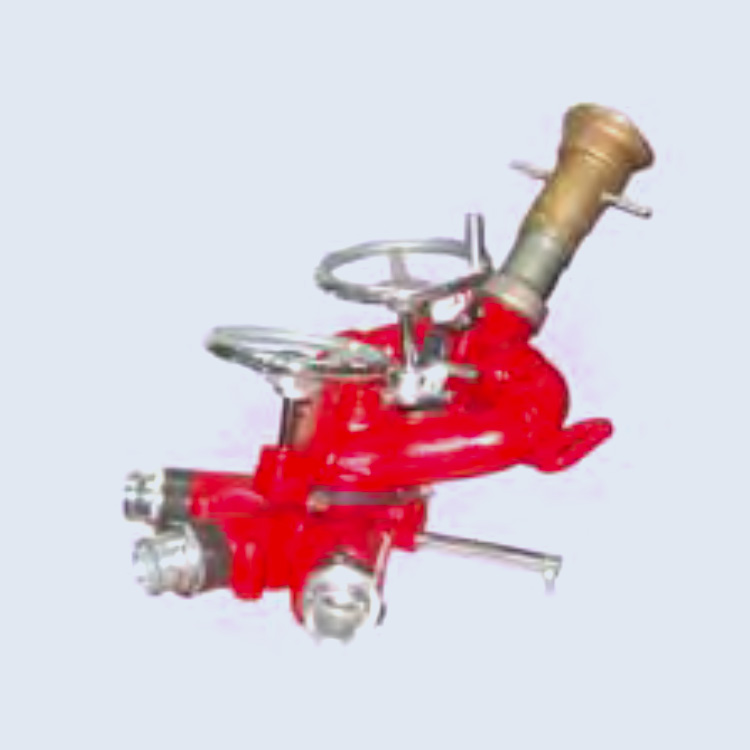

3-WAY PORTABLE MONITOR
Model: 03 PM8800
General Specification
Construction | Light Aluminium Alloy |
Waterway | Dual 2 1⁄2” |
Maximum Flow | 1,250 GPM (4,733 lpm) |
Horizontal Movement | 360° |
Vertical above Horizontal | +85° above to -15° below horizontal |
Base Inlet | Three 2 1⁄2” female NHT Optional: 21⁄2” male instantaneous |
Discharge Tip | 3 1⁄2” male NHT |
