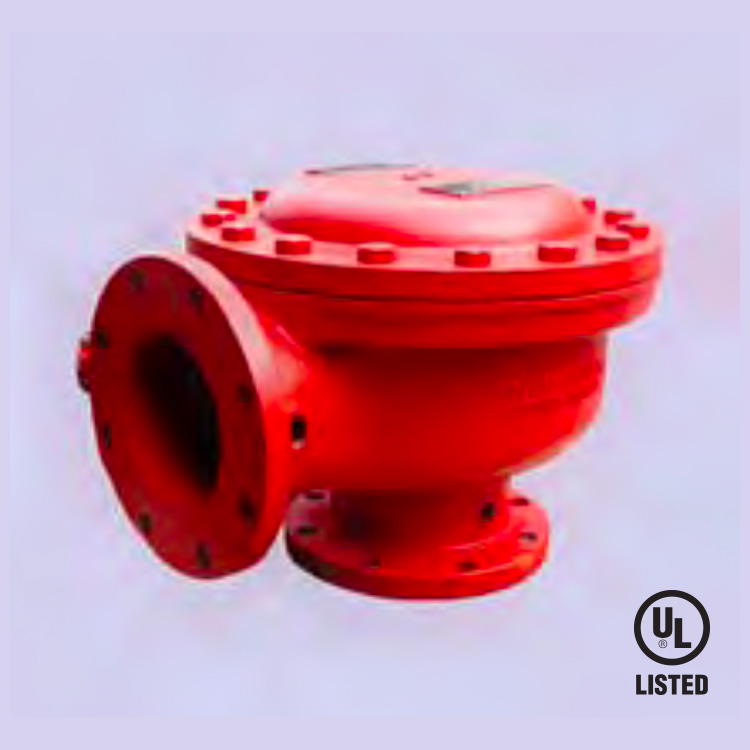

DELUGE VALVES (07 A)
Product Line
| Model 07 A |
Description
Categorised as a system control valve for fast application of water in a deluge spray system. Hydraulically operated, diaphragm actuated. Vertical mounting. UL listed. All valves are rated for 12 bar (175 psi) working pressure.
General Specification
| Valve Patterns | 90° angle |
| Valve Sizes | 2”, 3”, 4” 6” and 8” |
| Pressure Rating | Class 125 lbs |
| Test Pressure | 25 bar (350 psi) |
| Body Material | Cast Iron ASTM A126 |
| The valve is available with following trims | ? Basic trim includes main drain valve, priming connection, drip check valve, emergency release valve and pressure gauges. |
| ? Dry pilot trim (pneumatic release) which uses a pilot line of closed sprinkler containing air under pressure. |
|
| ? Wet pilot trim (hydraulic release) which uses a pilot line of closed sprinklers containing pressurised water. |
|
| ? Electric release trim which includes a solenoid valve and a pressure switch is provided to activate an electric alarm. |
