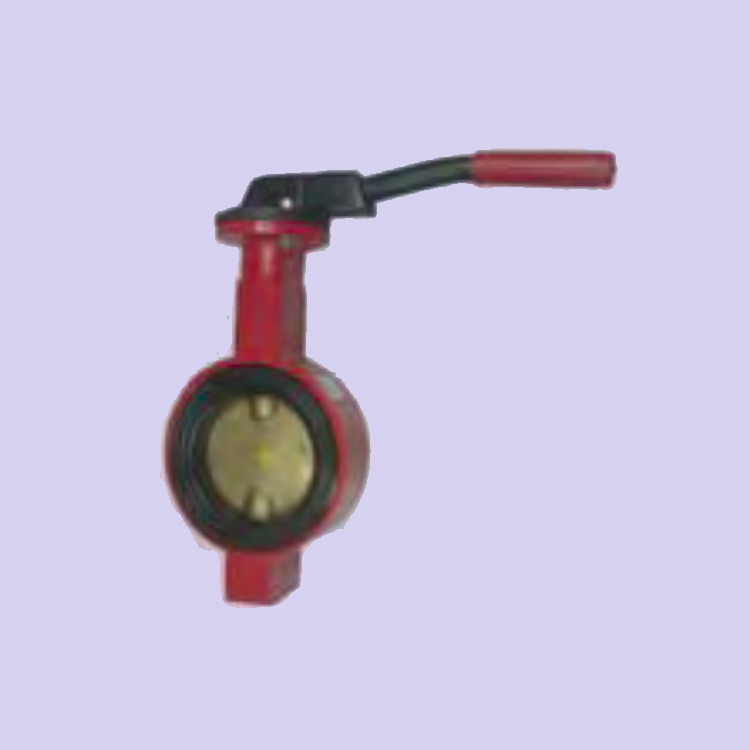

BUTTERFLY VALVES (Wafer-07 FA)
Product Line
| Model 07 FA (M) | 1¼”, 1½”, 2”, 2½”, 3”, 4”, 6”, 8”, 10” & 12” |
Description
Designed for installation between ANSI B16.1 Class 150# flanges pipe schedule 10 to 80.
General Specification
| Valve Type | Manual hand lever operation |
| Valve Body | Carbon Steel A216/WCB |
| Disc | Aluminium Bronze |
| Shaft | Monel or 316 Stainless Steel |
| Liner / seat | Buna-N |
| Rating | 16 bar |
