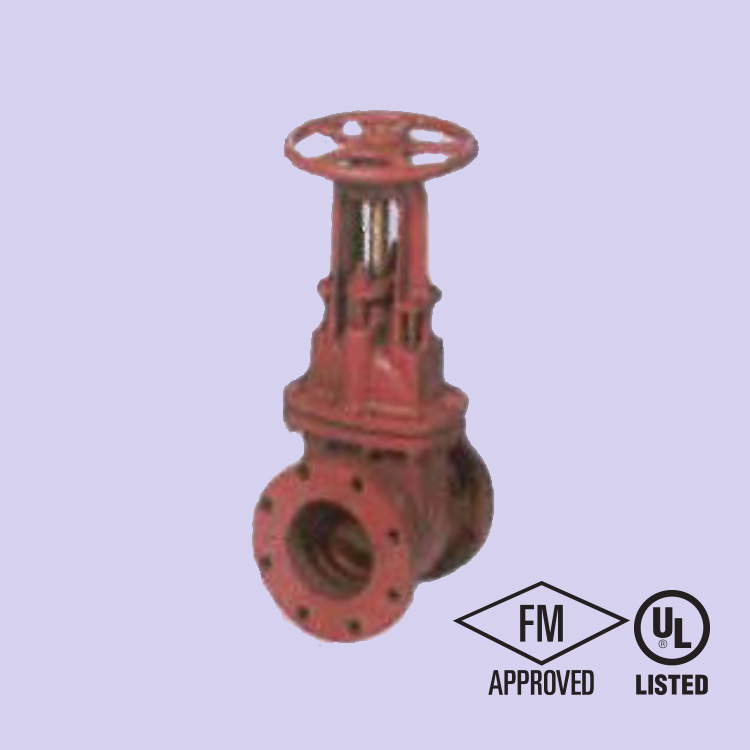

GATE VALVES WITH RISING STEM (OS+Y-07 GV8068)
Product Line
| Model 07 GV8068 | 2” to 14” |
Description
Same specifications as NRS gate valves except with outside screw and yoke stem.
General Specification
| Valve Body | Cast Iron ASTM A126 Class B |
| Hand wheel | Cast Iron ASTM A126 Class B |
| Stem | Maganese Bronze ASTM B584 |
| Wedge Disc | Cast Iron ASTM A126 (SBR coated) |
| Connections | ANSI 150 lbs FF flanges |
| Approvals | UL and FM |
