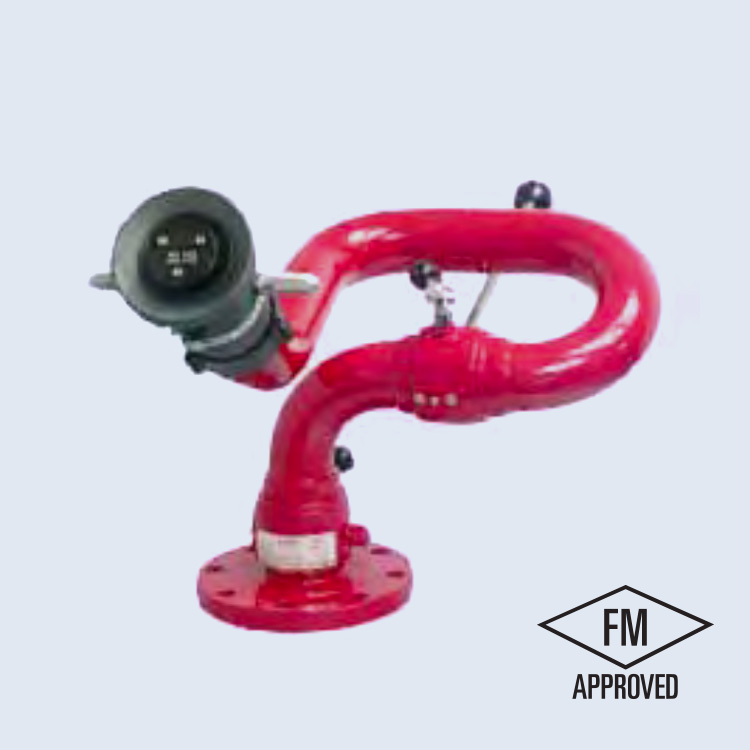

FIXED/DECK MONITOR STATIONS – DEFENDER 40
Model: 03 DEFENDER 40
General Specification
| Construction | Brass |
| Waterway | Single 2.5 |
| Maximum Flow | 750 GPM (2,840 lpm). |
| Horizontal Movement | 360° |
| Vertical Travel | 130° |
| Vertical Travel Operation | Handle Rod |
| Base Inlet | 3” or 4” ANSI 150# FF flange |
| Discharge Tip | 2 1⁄2” male NHT |
| Finish | Red Paint |
| Approval | FM approved |
