PRESSURE GAUGES (for Fire Protection Service)
Product Line
| Model | 05 HDP |
Description

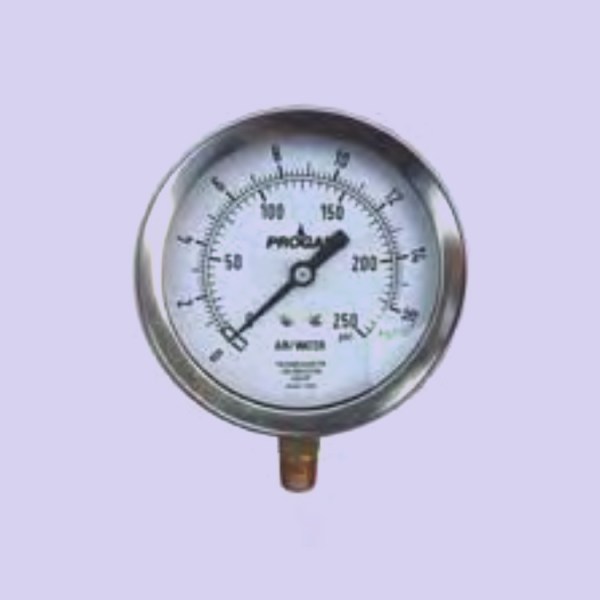

The pressure gauge has a 3½” (89 mm) glass covered dial face, Bourdon tube type with a pressure indicating range of 0 to 16 bar ( 0 – 250 psi).
Direct bottom mounting with 1/4″ BSPT male inlet connection. Accuracy as per UL 393 CL13.1A – 3% of FSD, CL13.1B – 2% of FSD.
Excess pressure as per UL 393 CL16.1 – 125% of FSD.
General Specification
| Casing | : Stainless Steel 304 SS |
| Window | : Hardened Glass |
| Bourdon Tube | : Phosphor Bronze |
| End Connection | : Brass |
| Connection | : ¼” NPT male |
UL listed version available on request.
