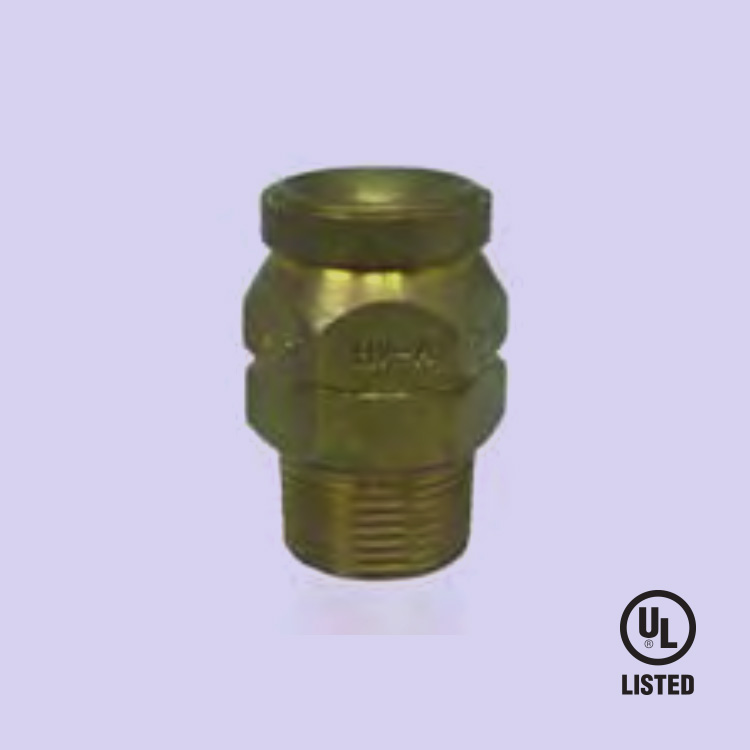

HIGH VELOCITY WATER SPRAY NOZZLES
Product Line
| Model 05 HVA | Brass |
| Model 05 HVA-S | 316 Stainless Steel |
Description
Open nozzles with an internal swirl plate that discharge water in a solid, dense and uniform pattern for effective fire control. Choice of nozzle flows according to K-factor and spray angle required. Minimum pressure 50 psi (3.5 bar) recommended. Inlet Size: 3⁄4” BSPT male (or NPT male)
General Specification
Nozzle K-factors and Spray Angles:
| K-factor (metric) | Spray Angle |
| 23 | 75° |
| 18 | 80° |
| 2 | 90° |
| 26 | 100° |
