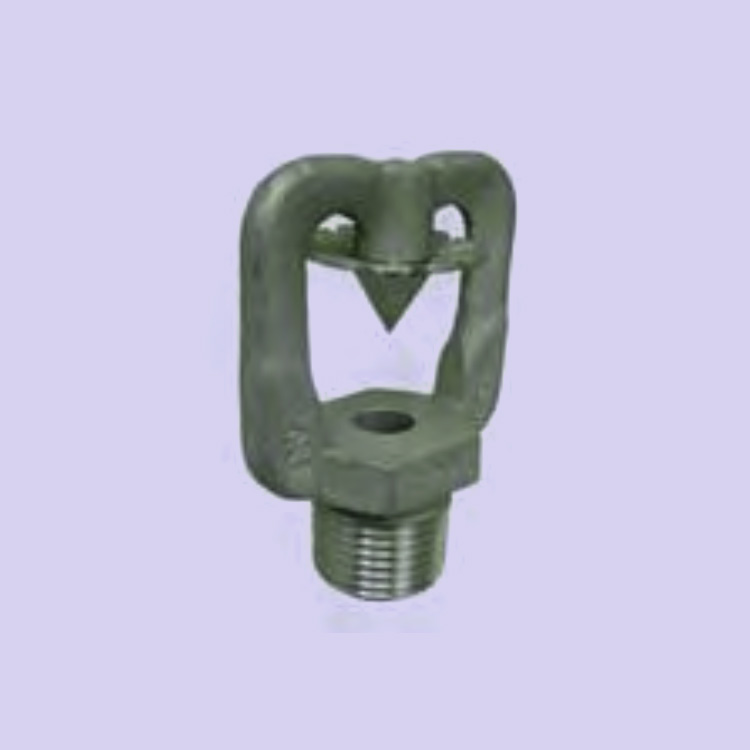

MEDIUM VELOCITY WATER SPRAY NOZZLES
Product Line
| Model 05 MV-A | Brass (UL listed) |
| Model 05 MV-E | Aluminium Bronze (UL listed) |
| Model 05 MV-B | 316 Stainless Steel |
Description
Open nozzles with an external deflector, that discharge small water droplets in a directional cone shaped pattern. Applicable for use with non-aspirating AFFF foam deluge systems. Choice of nozzle flows according to K-factor (or orifice size) and spray angle required.
General Specification
Nozzle Specifications:
| K-factor (metric) | 22, 30, 35, 41, 51, 64, 79, 91 and 102/td> |
| Spray Angles | 65°, 80°, 90°, 100°, 110°, 120° and 140° |
| Model | 1⁄2” BSPT male (or NPT male) |
| Inlet Size | Brass |
| Minimum Pressure | 20 psi (1.4 bar) recommended |
