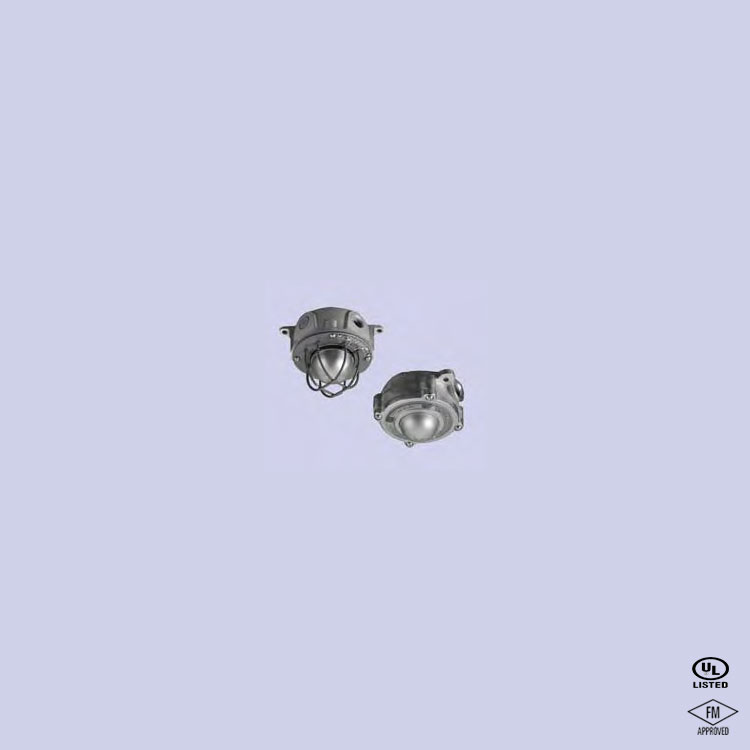

EXPLOSION PROOF HEAT DETECTORS
Product Line
| Model : | 08 | EPB/MPB501 | (58C) |
| Model : | 08 | 08 EPB/MPB502 | (58C) |
Description
Suitable for use in applications requiring protection against weather, moisture and explosive atmospheres. Classified for use in Class 1 Groups C & D; Class II Groups E, F & G hazardous locations.
Approvals – UL listed and FM approved.
Employs dual independent detection methods – rate-of-rise and fixed temperature. One circuit, normally open.
Cast metal back box with two opposing wire entries threaded for ½” rigid conduit.
Contact ratings – 1.0 amps at 6 – 28 vdc; 3.0 amps at 125 VAC
