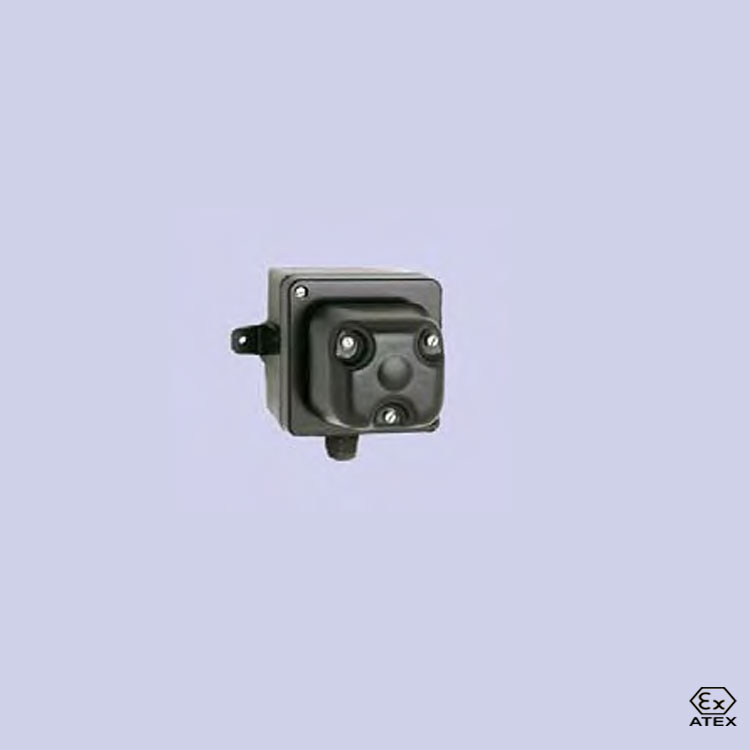

HAZARDOUS AREA SOUNDER (90 dB)
Product Line
| Model : | 08 | AS3 (4-tone) |
Description
Explosion proof signalling sounder for universal applications in explosion endangered areas. 4-tone types and tone frequencies selectable via DIP switch.
Black Housing with upper part in Polycarbonate construction.
Wall or ceiling mounted. ATEX approved.
| Enclosure : | Aluminium Die Cast |
| Protection Mode : | II 2 G Eex em (ib) IIC T6 |
| Ingress Protection : | IP66 |
| Power Supply : | 110-230 volts (+10% -15%) |
| Tone Types : | Single/two/three or wobble tone (selectable) via DIP switch |
| Tone Frequency : | 5 to 20 Hz in 4 settings adjustable |
| Terminal : | 1.5 mm2 single or fine wire |
| Cable Entry : | One 20 mm x 1.5 |
| Approval : | BVS 03 ATEX E430 |
