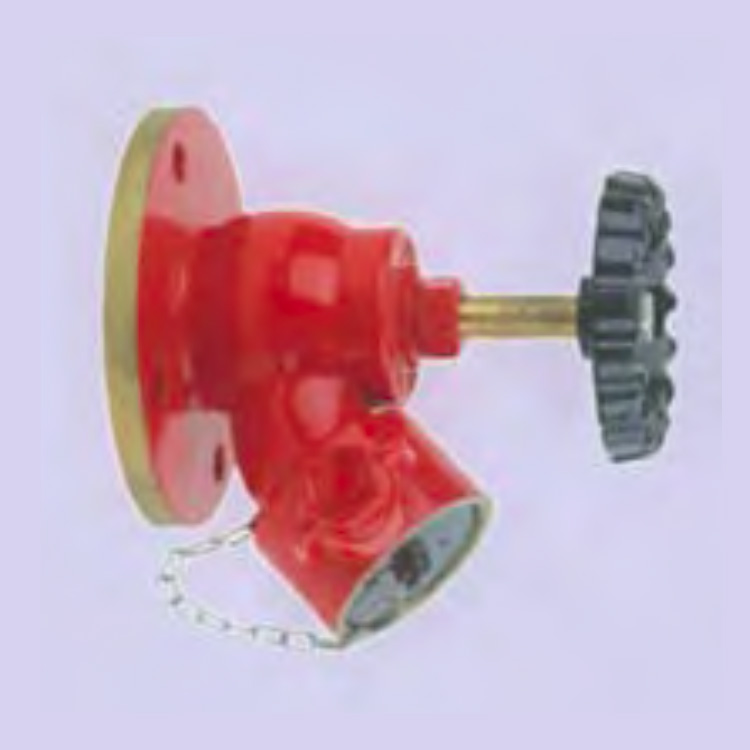

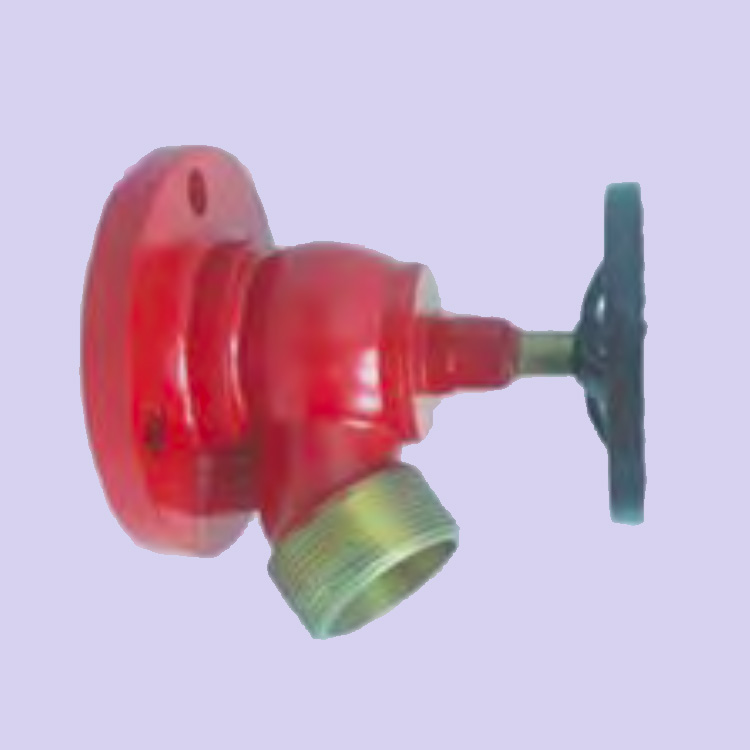

OBLIQUE 45° HYDRANT VALVES (07 HGV249-F)
Product Line
| Inlet | Outlet | |
| Model 07 HGV249-F1 | 2½” ANSI 150# FF | 2½” female instantaneous |
| Model 07 HGV249-F2 | 3” ANSI 150# FF | 2½” female instantaneous |
| Model 07 HGV249-F3 | 3” ANSI 150# FF | 2½” male NST |
General Specification
| Body Material | Cast Brass (or Gunmetal LG2) |
| Seat | Rubber |
| Hand Wheel | Light Alloy (or Cast Iron) |
| Accessories | Standard 2½” plastic plug and brass chain included |
| Option | 2½” brass male instantaneous cap and chain |
